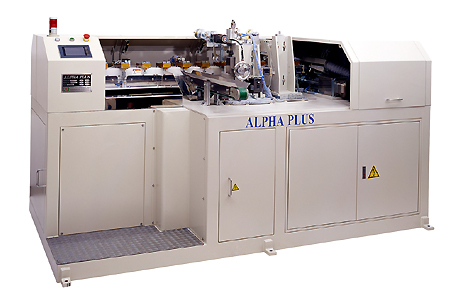

AP-6 Series High Performance Auto High Speed Toothbrush Finishing Machine
Model: AP-6
Capacity: 32 Pcs/Min.
Power: 11.5 KW
Consumption volume: 6 bar, 220 nl/min
Dimensions: 3100 x 1275 x 1850
  • Continuous running for 24 hours under good condition
  • Various trimming device, profiled cutters and spreader system etc. are available with efficient end-rounding finish
  • Self-adjusting end-rounding speed by frequency regulator to fit with different material of monofilament
  • Anti-static unit provides brush head and handle cleaning system to reduce static load on brush handles to have them absolutely clean.
  • Adopt man machine interface(MMI)
  • Complete suction for trimming stations & end-rounding stations by auto cleaning with filters.

Standard Device
Standard Device: Duster 1 Set
Power: 3 HP/set
Dimensions: 90 x 75 x 190 cm/set

Optional Device
Optional device: Date Coding
Power: kw
Dimensions: cm/set

PS. Power, Air consumption and Dimensions will be adjusted based upon different machine models.
